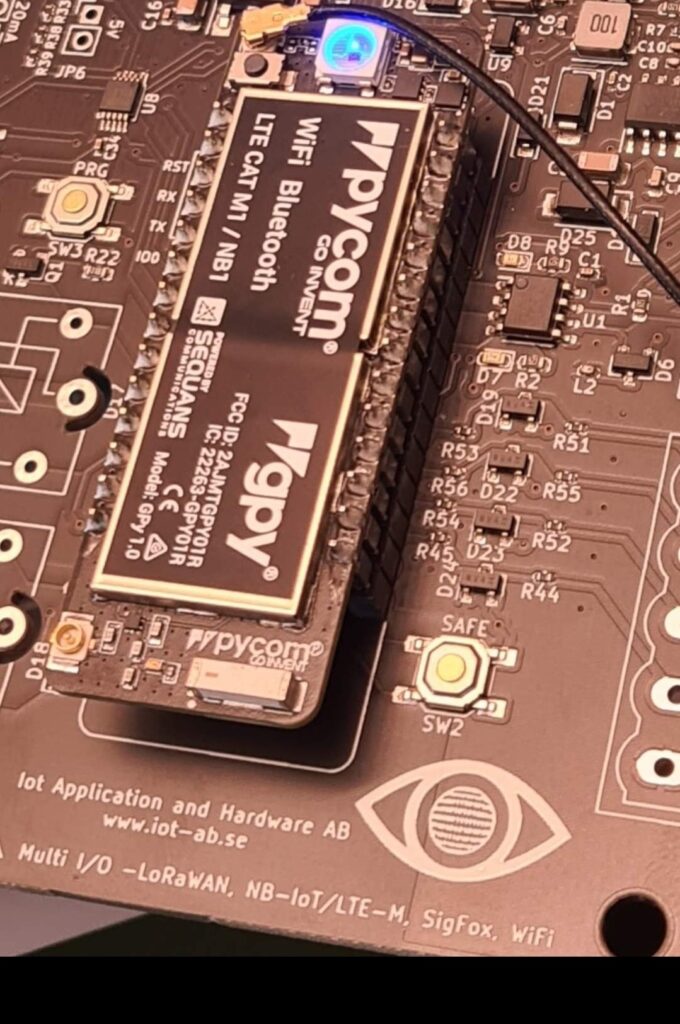

A new multipurpose industrial IoT-node is born, this is a extensionboard based on pycom.io MCU family.
The PCB have an impressive array of connectivity options and onboard I/O features like..
1 * Pycom controlled external sensorfeed excitation 12 VDC/350mA
4 * DI (32V)
2 * AI, 16 bit ADC (selectable range 0-5V, 0-10V, 0-20mA)
2 * DO ( latching relay 240V 5A)
1 * Modbus/RTU RS485 half duplex
1 * I2C communication (https://lnkd.in/dhwGk3g)
1 * OneWire interface
1 * SDI-12 interface
1 * Bluetooth , Low energy and classic
1 * micro USB, connect and program the Pycom chip
The IoT node can be operated by netadapter (12-24VDC) or by battery (1.8-6VDC). Low powerconsumption in deep sleep mode ~20uA
Run code and logic on the EDGE, Pycom is a freely programable MCU using micropython. The MCU allows you to connect to ANY API or IoT portal using the Pycom.io chip with LTE-M/NB-IoT, LoRaWAN, WiFi , Bluetooth or SigFox. (FipY) .
If you are Python programmer, now you can create your own IoT device with custom functionality, it’s also possible to OEM / Whitelabel the PCB.
